Experimental Design Approach to Optimize HA/β-TCP Nanocomposite Formation by Solution Combustion Process

Introduction

Calcium phosphates bio-ceramics  are widely used as bone substitutes due to close mineralogical similarity to biological bones. These materials offer several additional advantages, like highly biocompatible, nontoxic and exhibit bioactive behavior. Many researchers ^1-2 have reported that though calcium hydroxyapatite (HA) is highly biocompatible and good osteoconductive, it suffers from limited bioactivity due to its poor stability and hence extremely slower rate of degradation in biological fluids. This limitation is often overcome using bi phasic calcium phosphate (BCP) which combines the long-term stability of HA with the superior bioactivity and higher solubility of beta tricalcium phosphate (β-TCP) ². The phase ratio can be tailored for specific degradation needs; however, ~40% HA and 60% β-TCP is widely regarded as optimal for bone tissue engineering, especially as a bone graft extender.¹. Preparation of single-phase calcium hydroxyapatite (HA) and phase designed HA/β-TCP composite with desired properties for biomedical applications remains a great challenge for researchers. Physical and chemical properties of fabricated sample are strongly governed by the properties of starting powders, such as particle size and distribution, phase composition and phase stability. In recent years, several researchers ^3-6 have attempted to optimize the powder properties by using various processes. Many routes for synthesizing calcium phosphate powders have been developed to control the powder properties, namely solid state⁷,wet chemical precipitation ^8-10, sol-gel ^11-15, hydrothermal ^16-20, mechanochemical ²¹,  etc.

However, in many of these approaches, precise control over initial parameters—such as the calcium-to-phosphorus atomic ratio (Ca/P), pH values above 9—and final product characteristics, including phase composition, phase stability, and particle size, remains difficult to achieve.

Nowadays solution combustion method is widely employed for synthesizing ultrafine  oxide ceramic powders^22-29. The technique is particularly effective in controlling the process parameters ²⁹ which have a strong effect on the physiochemical properties of synthesized powder. The solution combustion ^22-29 involves an exothermic self-propagating chemical reaction between a metal oxidant  and a water-soluble carbonaceous fuel, (commonly citrate, glycine and urea etc.) in an aqueous medium. Solution combustion reaction process is started at relatively lower temperature regime (viz., ~ 400^oC), followed by sudden temperature rise subsequent rapid cooling ensures nucleation of maximum number of crystallites but restricts particle growth due to formation of large volume of gases molecules. Consequently, the as-synthesized material consists of voluminous, soft, porous mass that can easily be converted into nano grade powders. Principal advantages of the process include the ability to synthesize predesigned composition with high grades of purity, excellent homogeneity with nano sized powders in one step. Additionally, formation of huge volumes of gases molecules during the exothermic reaction further prevents the particles overgrowth.

In this solution combustion process, calculation of exact amount of reducing to oxidizing mixture is crucial. Based on propellent chemistry, Jain et al ³⁰ established   a technique to evaluate the degree of oxidizing and reducing power of the combustion process. The system released maximum heat energy when the reducing and oxidizing balance is in stoichiometric (µ=1). The stoichiometric composition of solution combustion is determined by considering the valences of all oxidizing and reducing elements of the reactants and their value is unity. The solution combustion produced an incandescent flame and the highest temperature attained is called to as  the ‘flame temperature (Tc) which has a significant influence on product properties, such as phase composition, particle size and specific surface area etc. The maximum flame temperature and its duration are strongly correlated with various process parameters, including the type of fuel, reducing to oxidizing ratio (µ), yield  and the starting reaction temperature (T), all of which collectively govern the flame temperature and the properties of the synthesized powders ^31–33. Previous studies indicate that  stable phase occurs when the combustion flame temperature isaround 780–800°C ^27–28. Based on this studies, 800°C was chosen as a target flame temperature in the present study.

Materials and Methods

The selection of a design of experiment (DoE) depends on the final focus of the investigation and the number of important parameters to be checked. The focus of this investigation was: (i) to optimize parametric set up level of  the solution combustion process parameters and to find out the degree of influence of individual parameter on the process outcomes, (ii) to predict the cause–effect relationship between the true system response and the input reaction parameters. To achieve these objectives, Taguchi’s technique³⁴ was employed in this investigation. Taguchi’s Design of Experiments (DoE) approach was applied to overcome optimization challenges and systematically evaluate the influence of individual process parameters on the response. This technique has been extensively applied across various fields of engineering and science for process optimization and for assessing the effects of multiple design parameters within a given parameter combination. Accordingly, the integration of experimental design and parametric optimization of solution combustion was achieved using the Taguchi approach. In this present work, the desired response was defined as achieving a target flam temperature in the solution combustion process.

In the present work, the experiments were designed and conducted using Taguchi’s orthogonal array methodology ^{29, 34}. The Taguchi orthogonal arrays are particularly effective in exploring the whole variables space with a relatively smaller number of experimental runs. This technique facilitates the study of the influence of process control variables and noise elements enables the identification of optimal properties for specific uses.

Based on preliminary experimental observations, the most crucial process control factors and their respective levels were identified as yield amount, B, fuel to oxidizer ratio,µ, initial reaction temperature, T

Experimental results showed that the yield batch size (B) ranged from 4 to 10, the fuel-to-oxidizer ratio (µ) from 0.8 to 2.8, and the initial furnace temperature (T) was set at 400°C.

Taguchi orthogonal arrays are fractional factorial experimental designs in which the columns are balanced and mutually orthogonal, ensuring that all factor-level combinations occur an equal number of times. This unique feature allows the influence of individual factors on the reaction outcomes to be estimated separately from the other reaction factors. The present study, an L₁₆ Taguchi orthogonal array was used, consisting of three system variables at four levels of individual. The process parameters, their corresponding levels, and the experimental design matrix (in coded form) are presented in the following table1&2 respectively

Table I: Solution combustion process parameters with their levels

 Table 2: Taguchi L16 design matrix, responses (Tc) and Signal to noise ratio.

Hydrated calcium nitrate and diammonium hydrogen phosphate were used as starting raw materials for the preparation of the target composite. Analytical-reagent-grade glycine was employed as the fuel for the combustion reaction. For the synthesis of the target composite, predetermined aqueous solutions of metal nitrate, AR grade and diammonium hydrogen phosphate (DAP), (NH₄)₂HPO₄ (A.R. grade), were slowly mixed under continuous magnetic stirring at room temperature. The calcium-to-phosphorus atomic ratio was strictly maintained at 1.5520 and 1.5690. The initially formed white precipitate was subsequently dissolved by adding 3ml of concentrated nitric acid. Thereafter, required quantity of glycine was mixed to the solution and make a clear homogeneous solution with the help of magnetic stirrer at room temperature.

Then the precursor prepared was transferred to a reaction container of ceramic-coated mild steel container and placed into a kanthal wire muffle furnace at 300–700°C. The reaction container was covered by a wire mesh to  minimize particle loss due to aerosol formation. With the help of  “K-type” thermocouple, complete temperature–time phenomena were captured of  the combustion reaction. At initial stage, the precursor solution boiled vigorously with the evolution of large volumes of gases. The viscous precursor then frothed, followed by the sudden emergence of an incandescent flame. The heat generated during the exothermic reaction was self-sustaining and completed without the need for external energy supply. The steps of the process are represented in Figure 1.

A Z-trend paperless chart recorder recorded the time temperature profile of the reaction. (USA made, Honeywell,) Philips, XRD (Cu–Kα₁ radiation, λ = 0.154056 nm, a Ni filter).  From the XRD spectrum, average crystallite size of the product was calculated by using the line-broadening method based on the Scherrer equation:

where D, average crystallite size in nm, λ wavelength of the X-ray radiation, θ, the Bragg angle, and β, the full width at half maximum (FWHM) of the most intense diffraction peak corresponding to the (210) plane of β-TCP.

The powder morphology and particle size, shape, and surface area of the synthesized powders were investigated using a scanning electron microscope (SEM) (Leo 430i, U.K.). Prior to SEM analysis, the powders were gently crushed and ultrasonicated in laboratory-grade isopropanol for approximately 5 minutes. The well-dispersed powders thus obtained were used for the morphological investigations.

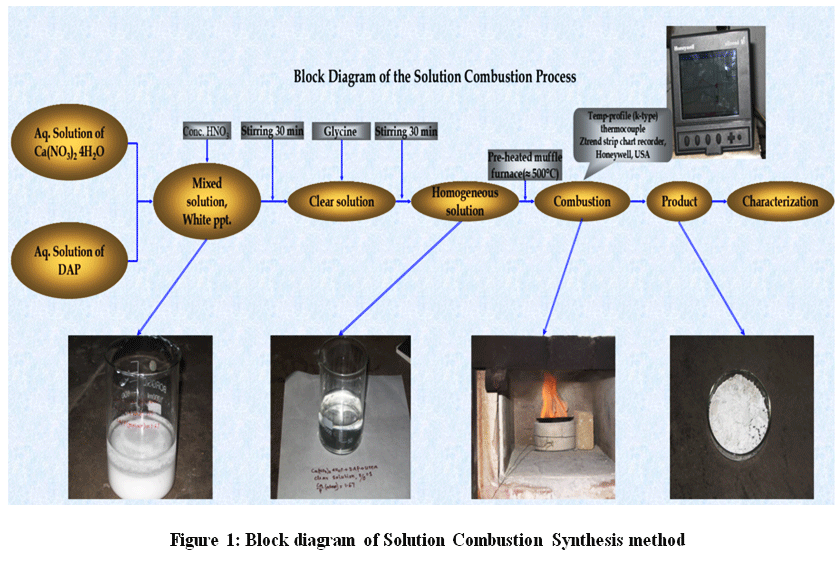

Figure 1: Block diagram of Solution Combustion Synthesis method Click here to View Figure

Results and Discussion

Influence of reaction parameters on combustion flame

Data Analysis and determine optimum parametric levels using Signal to noise ratio

To corelate the effects of individual process parameters on the process outcomes (flame temperature, Tc) and to determine the best parametric combination, Taguchi’s DoE performance determine known as the signal to noise ratio was employed. In this Taguchi approach, the Signal to noise ratio is used to identify restrict factor values that are least sensitive to noise factors. The signal indicates the mean response value, while the noise shows the variability around the mean, thereby indicating the sensitivity of the experimental output to uncontrollable factors. The selection of an appropriate S/N ratio be determined by on the quality characteristic of the outcome or system to be optimized ³⁴.

In Taguchi method used 3 types of signals to noise ratios: “nominal is best” (NB), “lower the better” (LB), and “higher the better” (HB). The appropriate selection criterion chosen is based on previous experience and identifying of the system. In the present investigation, the quality feature of the solution combustion reaction was selected as the reaction maximum temperature. Optimal results are obtained when the response is close to a target value, since stable phase formation of biphasic composite powders with nanoscale features occurs when the flame temperature lies in the range of 780–800 °C ^27–28. Accordingly, a target flame temperature (Tc) of 800 °C was selected, and the nominal-is-best (NB) criterion was adopted for optimization in this study.

Signal to noise ratio for the NB type was calculated using the following expression:

here, Y_avg(i) : average of i^th experimental output and σ target value; standard deviation of i^th outcomes.

Analysis of signal to noise ratio(S/N)

Based on the results summarized in Table 2 (L16), the signal to noise ratios corresponding to the recorded flame temperature for individual run were determined and are also presented in Table 2. In Taguchi’s designs, the effects of individual process parameters at different levels can be readily isolated and analysed. In the present S/N ratio analysis, the mean S/N ratio for the batch size at all Levels (i.e.1,2,3&4) was obtained by taking the average of all S/N ratios of experimental Runs in the 1 to 4, 5 to 8, 9 to 12 and 13 to 16 respectively. The same methodology was used to evaluate the mean signal to noise ratios at all levels of the remaining process parameters.

Figure 2 illustrates the S/N response plot for the maximum temperature, while the main effects plot showing the direct influence of reaction variables on the outcome is shown in Figure 3. The mean responses for each process parameter at different levels are listed in Table 3.

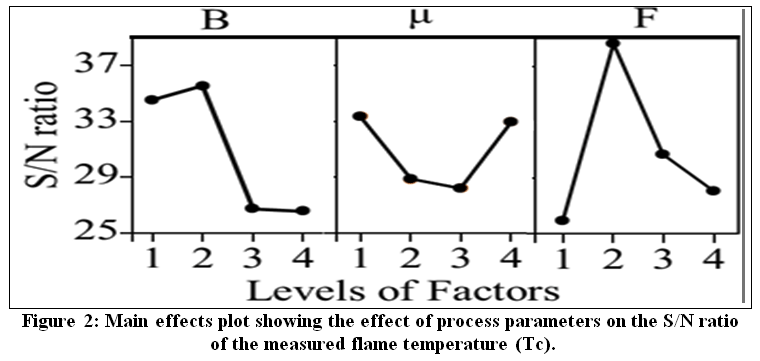

Figure 2: Main effects plot showing the effect of process parameters on the S/N ratio of the measured flame temperature (Tc). Click here to View Figure

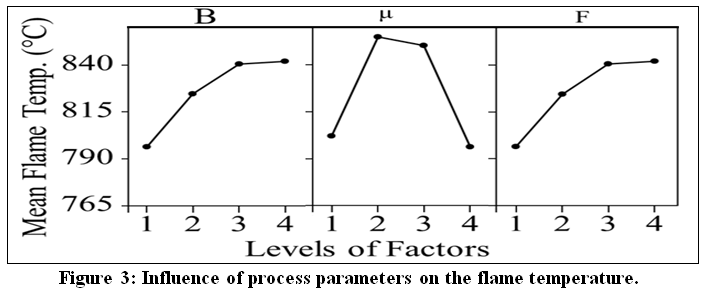

Figure 3: Influence of process parameters on the flame temperature.  Click here to View Figure

Table 3: Mean responses of the process parameters at various levels.

A higher signal-to-noise (S/N) ratio indicates improve quality performance, regardless of the selected quality characteristic. Accordingly, the optimal process parameter levels are those that yield the highest S/N ratio.. From the S/N ratio analysis shown in Fig. 2, the optimal parametric combination for the desired flame temperature is B2.µ1.F2

corresponding to level 2 of batch size (B), level 1 of fuel-to-oxidizer ratio (µ), and level 2 of starting furnace temperature (T).

Based on the S/N ratio analysis shown in Fig. 2, the optimal parametric combination for achieving the target flame temperature is, corresponding to level 2 of batch size (B), level 1 of fuel-to-oxidizer ratio (µ), and level 2 of initial furnace temperature (T).

Furthermore, the mean response values presented in Table 3 and the main effects plot shown in Fig. 3 clearly indicate that batch size (B) is the most influential factor affecting the combustion flame temperature, followed by the fuel to oxidizer ratio (µ) and the starting furnace temperature (T). Yield size (B) and staring furnace temperature exhibit a positive influence on the flame temperature, whereas the fuel-to-oxidizer ratio shows an initial increasing effect followed by a declining curve.

Analysis of variance: ANOVA

The main purpose of analysis of variance or ANOVA is to find the system variables that extensively influence the quality characteristics. Additionally, F-test is also performed to determine the statistical significance of each process parameter on the reaction combustion flame temperature. ANOVA results are presented in Table 4.

The percentage contribution of variance (P) is given by:

Here, SS’: pure sum of square; S_T : total sum of square. F-ratio of a parameter is the ratio of variance of that parameter and variance of error.

From Table 4, the ANOVA results clearly indicate that batch size is the most significant parameter influencing the reaction combustion flame temperature, with a percentage contribution of 43.47%. This observation is consistent with the mean response analysis of the process parameters presented in Table 3. The fuel-to-oxidizer ratio is the second most influential factor, contributing 23.45% to the total variance. In contrast, the initial furnace temperature shows the least influence, with a contribution of 7.42%.

Table 4: ANOVA results for recorded flame temperature.

Product Characterization

Additionally, the effect of flame duration (s) on the characteristics of the synthesized powders was investigated. Figure 4(a) presents the time–temperature profiles obtained from the experiments, which indicate that both the flame temperature and flame duration increase with increasing batch size. A larger reactant mass in the solution combustion reaction releases greater enthalpy, leading to a higher flame temperature and longer combustion duration. Figure 4(b) shows that the flame temperature reaches its maximum at the stoichiometric fuel-to-oxidizer ratio, whereas in both fuel lean and fuel rich combustion reaction produce comparatively lower combustion temperatures. At the stoichiometric ratio, the combustion reaction proceeds to completion, leading to the highest flame temperature. In contrast, a fuel-lean system results in incomplete combustion and hence lower flame temperatures. On the other hand, in a fuel-rich system, additional oxygen from the surrounding air is required to complete the combustion of excess fuel. Therefore, the flame temperature decreases, but the combustion duration becomes longer.

Figure 4(c) illustrates the effect of initial furnace temperature on reaction flame temperature and flame duration. An increase in furnace temperature leads to an increase in flame duration; however, no significant change in flame temperature is observed. The probable reason for the extended combustion duration at higher initial furnace temperatures is the reduced rate of heat loss to the surroundings.

XRD analysis of the synthesized powders revealed that longer flame duration adversely affects crystallite size, promoting increased crystallite growth.

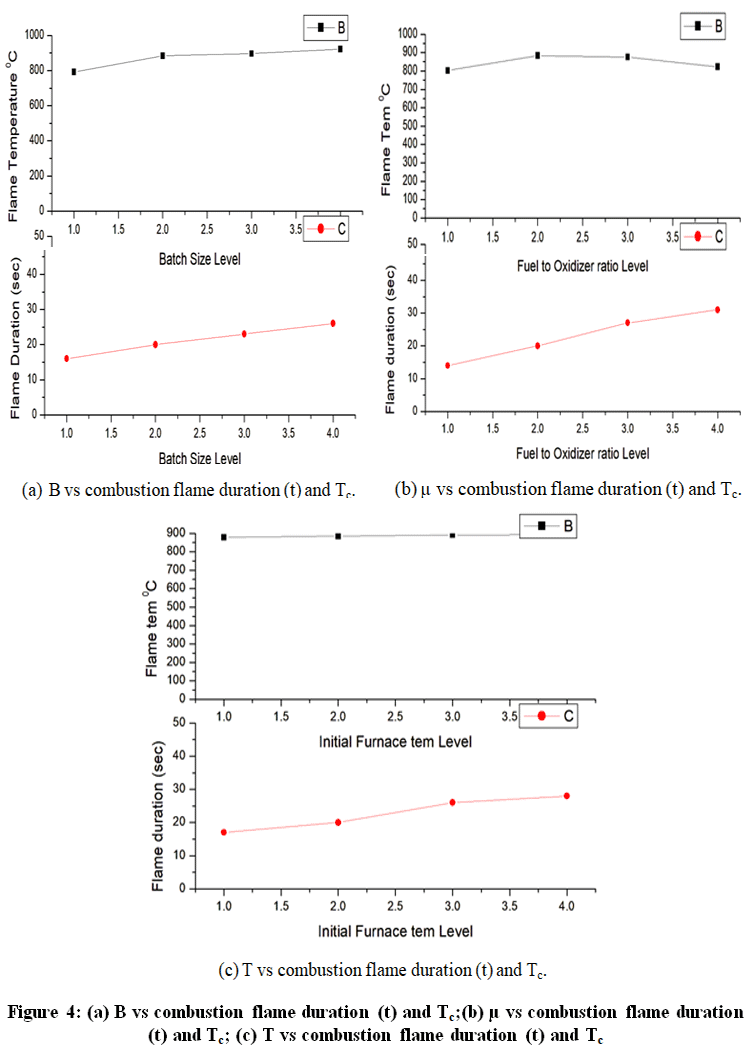

Figure 4: (a) B vs combustion flame duration (t) and Tc;(b) µ vs combustion flame duration (t) and Tc; (c) T vs combustion flame duration (t) and Tc Click here to View table

Figure 5 shows the X-ray diffraction patterns of selected as processed powders obtained by the solution combustion reaction using a calcium metal nitrate, DAP and glycine system at B2·µ1·F2, corresponding to levels 2, 1, and 2 of yield size (B), fuel to oxidizer ratio (µ), and starting furnace temperature (T), respectively. To tailor the phase composition of the as-synthesized powders, two different calcium-to-phosphorous (Ca/P) ratios, namely 1.5520 and 1.5690, were employed in this work.

The crystalline phases were identified using JCPDS file No. 09-0432 (HAp) and No. 09-0169 (β-TCP). The XRD patterns show well-defined crystalline phases of HAp and β-TCP in the synthesized powders. The percentage of volume of each phase was estimated from the powder XRD patterns by comparing the integrated intensities of the characteristic peaks of each phase, as the integrated intensity is proportional to the corresponding volume fraction. The volume fraction was calculated using the following relation:

Here I_β-TCP and I_HA are the integrated values of peak intensities of β-TCP and HAp phases, respectively.

The calculated volume fractions of β-TCP and HAp were approximately 70.12% and 29.88%, respectively, for a Ca/P ratio of 1.5520 in the precursor batch. For a Ca/P ratio of 1.5690, the corresponding volume fractions of β-TCP and HAp were found to be 60.48% and 39.52%, respectively. The results clearly indicate that the Ca to P atomic ratio significantly influences the phase composition of the synthesized powders.. The chemical analysis of both as-synthesized powders is presented in Table 5.

Furthermore, the temperature above 800 °C were necessary to obtain well-crystallized composite powders.. Powders synthesized below 800 °C were amorphous or poorly crystalline and required post-heat treatment to obtain well-crystallized biphasic calcium phosphate (BCP) powders.. The crystallite size, calculated from XRD analysis, increased with increasing flame temperature and flame duration. Higher flame temperatures combined with longer combustion durations promote a sintering effect, leading to crystallite growth. This trend is further corroborated by the average particle size measurements obtained from SEM analysis, as shown in Figure 6.

Many researchers^35-36 have employed X-ray diffraction (XRD), scanning electron microscopy (SEM), and field emission scanning electron microscopy (FESEM) techniques to confirm the nanostructured nature of synthesized materials in their studies. In the present investigation, SEM micrographs of the synthesized powders revealed the formation of fine agglomerated particles with nanoscale dimensions. The individual particles appear nearly spherical and are uniformly distributed, indicating the successful synthesis of nanoparticles. The particles also exhibit a highly porous and agglomerated morphology, which is commonly observed in powders produced by the solution combustion synthesis method due to the rapid evolution of gases during the combustion process. The observed morphology therefore confirms the formation of nanostructured materials. Furthermore, the XRD pattern exhibited characteristic diffraction peaks corresponding to the crystalline phase of the synthesized material. The diffraction peaks were noticeably broadened, which is a typical indication of the nanocrystalline nature of the powder. The average crystallite size was estimated using the Scherrer equation and was found to be in the nanometre range. These results further confirm the successful formation of nanoparticles.

Table 5: Chemical analysis of precursor solution and as synthesized BCP powders

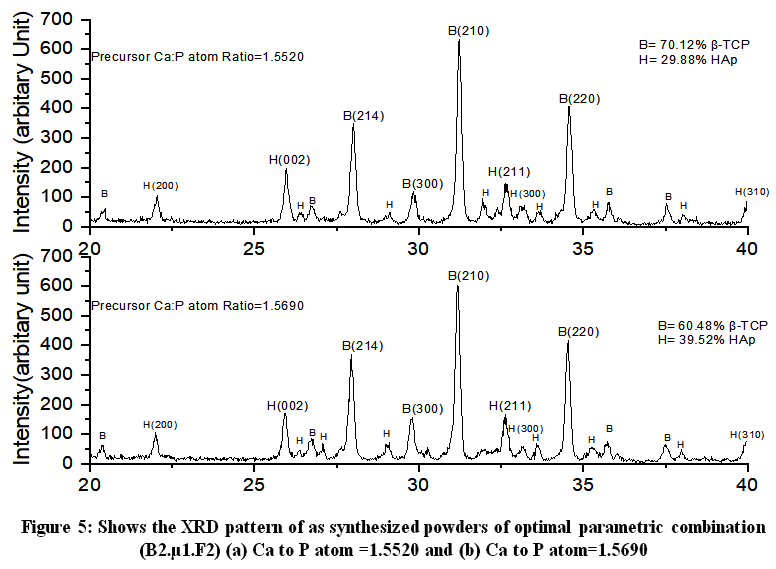

Figure 5: shows the XRD pattern of as synthesized powders of optimal parametric combination (B2.µ1.F2) (a) Ca to P atom =1.5520 and (b) Ca to P atom=1.5690. Click here to View Figure

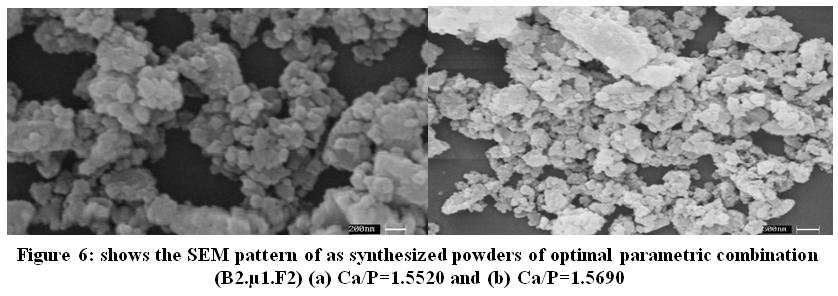

Figure 6: shows the SEM pattern of as synthesized powders of optimal parametric combination (B2.µ1.F2) (a) Ca/P=1.5520 and (b) Ca/P=1.5690 Click here to View Figure

Conclusion

In this study, Taguchi DoE technique was successfully applied to optimize the solution combustion synthesis of nanostructured, predesigned HA/β-TCP composite powders. The optimal combination of solution combustion process parameters for obtaining powders with 60.48% β-TCP and 39.52% HA was identified as B2·µ1·F2, corresponding to levels 2, 1, and 2 of yield size (B), fuel to oxidizer ratio (µ), and starting reaction temperature (T), separately. Under these optimized conditions, a flame temperature of 802 °C, a flame duration of 14 s, an average particle size of 86 nm, and a crystallite size of 38 nm were achieved.

The signal to noise ratio analysis and ANOVA identified batch size (B) as the most influential parameter, followed by the fuel to oxidizer ratio (µ).In contrast, the starting furnace temperature (T) was found to have no significant effect on the maximum combustion flame temperature because maximum heat is generated from the reaction mass and its enthalpy An increase in batch size and initial furnace temperature prolonged the flame duration, leading to enhanced particle growth and crystallite coarsening in the as-synthesized powders.Conversely, an increase in the fuel-to-oxidizer ratio promoted the formation of finer particles with reduced crystallite sizes..

Overall, the Taguchi DoE–based optimized parameters enabled the successful synthesis of nanocomposite of HA/β-TCP powders with controlled phase composition and desirable microstructural features, demonstrating the effectiveness of this approach for solution combustion synthesis.

Acknowledgement

The research work is supported by Netaji Subhash Engineering College, Techno India, WB, India and Department of Electronics and Applied Instrumentation, Jadavpur University, Kolkata, India. The authors wish to thank Prof. Sukhomay Pal, Mechanical Engineering, IIT Guwahati, India for his continuous encouragement in this regard.

Funding Sources

The author(s) received no financial support for the research, authorship, and/or publication of this article

Conflict of Interest

The authors do not have any conflict of interest

Data Availability Statement

This statement does not apply to this article

Ethics Statement

This research did not involve human participants, animal subjects, or any material that requires ethical approval

Permission to reproduce material from other Sources

Not applicable

Author Contributions:

Samir Kumar Ghosh(S.K.G): Experimental and analysis, making methodology and data analysis.

Sankar Narayan Patra (S.N.P): Implementation of DoE and analysis and writing the parametric  optimization process.
