Introduction
Styrene-[ethylene-(ethylene-propylene)]-styrene (SEEPS) is a styrenic thermoplastic elastomer (TPE). Basically it is a block copolymer with rigid styrene blocks and elastomeric ethylene-(ethylene-propylene) blocks. Styrene blocks function as hard segments those form physical cross-linking centers between elastomeric phase 1–3. Because of so called physical-crosslinks, SEEPS is highly flexible with good recoverability and resilience those make it a promising material for various applications. It should also be mentioned that SEEPS is one of the most durable styrenic TPEs in terms of its high UV, weathering, and aging resistance. In addition to these, its high tensile strength, tensile strain and toughness make it unique for many applications including household appliances, adhesives, coatings, automotive parts 1–3. It can be used as a compatibilizer 4,5 or a modifier 6,7 for binary or ternary blends with polypropylene (PP) 8, polyamide (PA) 9,10, polyethylene terephthalate (PET) 11, PP/polystyrene (PS )6,7, PP/ground tire rubber 4. In most of these studies, SEEPS amount and type were found significant in terms of blend properties. PP/SEEPS blends were reported to show lower elastic modulus and yield stress with higher level of tensile strain compared to PP 8. Weng et al., studied the rheological properties of the PA/SEEPS blends, and SEEPS ratio was found significant in terms of behavior and morphology 9,12. In addition to binary blends, ternary blends of SEEPS were also reported in the literature. Lin et al. prepared recycled PET/SEEPS blends and investigated the addition of (maleic anhydride)-grafted-styrene-ethylene-butylene-styrene (SEBS-g-MAH) at different ratios on rheological, morphological, mechanical properties. As reported in the study, SEBS-g-MAH incorporation improved morphological, mechanical, rheological properties 11. In another study, SEEPS was used as an interfacial modifier for PP/PS blends to fabricate membranes. PP/PS/SEEPS ratio, processing route, and conditions were found important for the membrane properties 6,7. Application of SEEPS as a compatibilizer for PP/ground tire rubber blend was also investigated by Lu et al. Although various compatibilizers were used in the study, SEEPS was reported to show the highest performance for the interface properties between two phases 4. In addition to SEEPS blends, there are couple of studies about the characterization of SEEPS mixtures with various oils 13–15. From the recent literature given above, it is obvious that SEEPS is mostly used as a component of the polymeric systems. However, it can be used alone for the fabrication of fine fibers 16, conductive polymer composites 17, pressure sensors 17, magnetorheological composites 18 with 18 or without extenders 16,17. Polymeric composites are materials with improved properties those consist of at least one matrix and one filler. Incorporation of filler into the matrix leads to fabrication of functional materials. Various composites can be prepared from various sources 19–23.
Vermiculite (VMT) is a multilayered natural inorganic material. Because of its nature, its content and structure might change based on the region and conditions. Depending on the structure and composition, various properties including density, hardness, delamination resistance, color, refractive index can change 24–26. One of the most promising properties of VMT is its expandable structure results in an accordion-like porous particle morphology. This form of the VMT is called expanded vermiculite. As a result of expansion, distance between layers, porosity, surface area, and thermal resistance increase; density decreases and VMT becomes an important sustainable alternative filler for polymer composites. However, expanded layers are loosely bonded with low layer-layer interaction negatively affects the mechanical properties of VMT and it becomes sensitive to applied force including shear and compression. In order to make this disadvantage into an advantage, expanded vermiculites can be powdered by various methods in order to obtain different grades. By doing this size of the vermiculites can be tuned from couple of milimeters to nanometers 24,26. In addition to this study, particle size was reported to be affected by processing conditions 25. In order to investigate effects of processing conditions, two different VMT particles were used at various concentrations from 1-30 wt% with SEEPS matrix. Samples were prepared by a solution based high shear mixing and compression molding. Morphological, structural, thermal, mechanical properties, flame spread character of the composites and viscosity of the solutions were analyzed as a function of VMT type and concentration.
Material and Methods
Materials
Styrene-[ethylene-(ethylene-propylene)]-styrene block copolymer with 30% styrene content was used (SEPTON 4033, Kuraray Co Ltd.) as the matrix. Toluene (Merck) was used as the solvent. The raw VMT, with an average grain size of 250 mm, was kindly supplied from Karbosil Kimya Li. Co., Turkey. The company reported the wt% content of the VMT as: SiO2 38-46, Al2O3 10-16, MgO 16-35, CaO 1-5, K2O 1-6, FeO3 6-13, TiO2 1-3, H2O 8-6, others 0.2-1.2. To obtain expanded VMT, a tube furnace (OTF-1200X, MTI) was used. The tube furnace was heated up to 900 ˚C after that sample was put into the furnace and kept at this temperature for 30 minutes. After this process, expanded VMT was powdered by using a mortar and a pestle. The samples were sieved and two different VMTs were obtained, and samples named as VMT-1 and VMT-2. As given in Fig. 1a and c, VMT-1 and VMT-2 had the average particle size value of 299.5 µm and 551.6 µm, respectively before the sample preparation.
 |

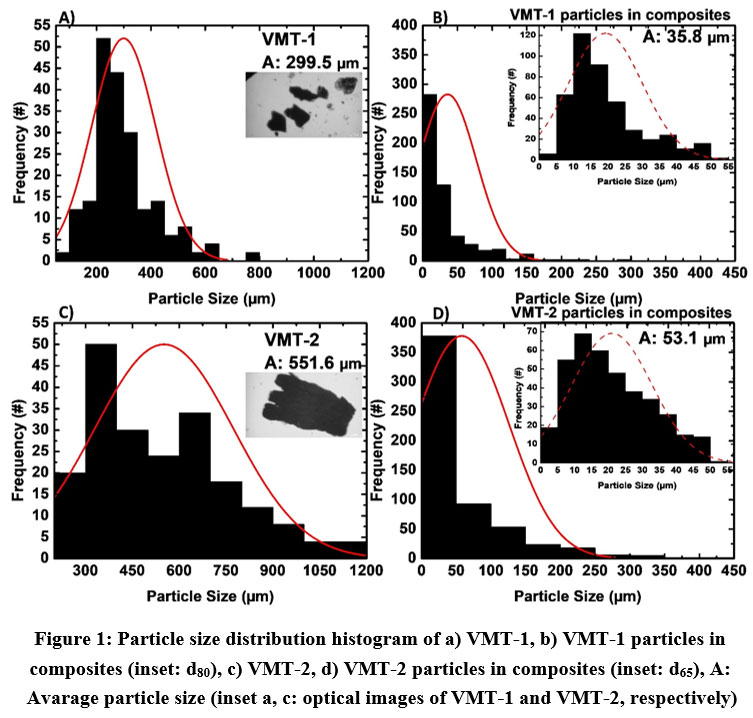

Figure 1: Particle size distribution histogram of a) VMT-1, b) VMT-1 particles in composites (inset: d80), c) VMT-2, d) VMT-2 particles in composites (inset: d65).
Click here to View Figure |
Preparation of the VMT/SEEPS composites

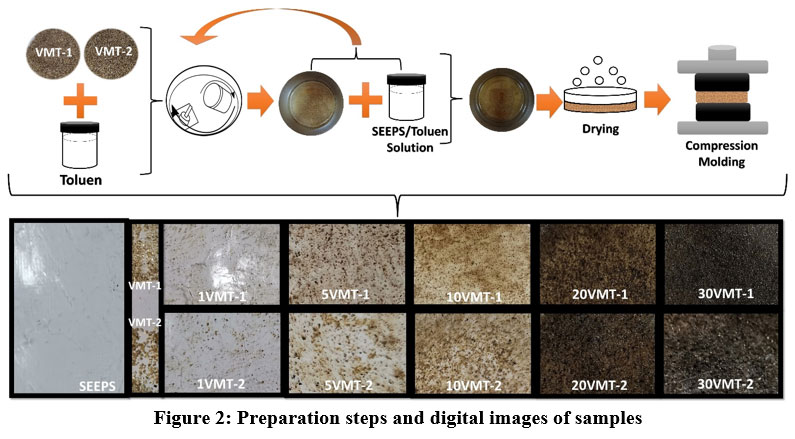

The composites were prepared by combination of solvent casting and hot pressing. Before the process, VMT was dried in a vacuum oven (Wisd, WOV-20) for 15 h. at 80 °C. Toluene was used as a solvent and SEEPS:Toluene weight ratio was 1:3. Polymer was dissolved at 50 °C by a magnetic stirrer (Daihan MSH 20 D, 450 rpm). The weight % of the VMT was 1, 5, 10 and 20, 30 wt%. Preparation steps and digital images of the composites can be seen from Fig.2. Since VMT has low density and high surface area with porous morphology, its interaction with the polymer might be challenging. To increase the interaction between VMTs and polymer and disperse the fillers homogeneously, a high shear mixer (KuraboMazerustar KK250, 1600 rpm) was used. Mixing was performed in two steps, in the first step VMT was mixed with the 2 g of solvent for a minute. In the second step, polymer solution was added and mixed under the same conditions.
Table 1: Sample codes, contents, viscosity and normalized viscosity values of the samples
|
Code
|
SEEPS Ratio (wt%)
|
Filler Type/ Filler Ratio (wt%)
|
Viscosity
(cP)
|
Normalized Viscosity (η/ηSEEPS, cP/cP)
|
Tensile Strength(MPa)/ Tensile Strain (%)
|
|
SEEPS
|
100
|
–
|
1454
|
1
|
11.88/750.68
|
|
1VMT-1
|
99
|
VMT-1/1
|
1500
|
1.03
|
11.35/670.43
|
|
5VMT-1
|
95
|
VMT-1/5
|
1650
|
1.13
|
11.06/644.20
|
|
10VMT-1
|
90
|
VMT-1/10
|
1842
|
1.26
|
10.62/605.53
|
|
20VMT-1
|
80
|
VMT-1/20
|
2061
|
1.42
|
10.04/585.10
|
|
30VMT-1
|
70
|
VMT-1/30
|
2086
|
1.43
|
8.62/544.88
|
|
1VMT-2
|
99
|
VMT-2/1
|
1634
|
1.12
|
9.80/679.08
|
|
5VMT-2
|
95
|
VMT-2/5
|
1751
|
1.2
|
9.25/642.24
|
|
10VMT-2
|
90
|
VMT-2/10
|
2463
|
1.63
|
8.89/627.69
|
|
20VMT-2
|
80
|
VMT-2/20
|
2809
|
1.93
|
6.50/583.52
|
|
30VMT-2
|
70
|
VMT-2/30
|
2832
|
1.94
|
5.22/501.71
|
VMT/SEEPS/Toluene mixtures were cast into the Petri dishes. Samples were kept in an oven (Wisd, WOV-20) at 45 °C for 15 h to dry. In the next step solvent was further removed under vacuum at 80 °C for 15 h. To obtain homogeneous film morphology and film thickness, cast films were removed from the Petri dishes and compression molded (Gulnar Machine Laboratory type dual stage press) between teflon coated plates at 200 °C for 15 sec under 3 MPa following that composites were left to cool down at 25 ˚C for a minute.
Characterization of the composites
Morphological Analysis
To determine the average particle size of the VMT-1 and VMT-2 an optical microscope instrument (AmScope 40X-2500X LED) was used. Particle size distribution histograms were drawn based on the data obtained from by Image J. software. For the particle size, length and width of the particle were measured and average value was calculated. Field emission scanning electron microscopy (FESEM, 30 kV) was used for the analysis of composite morphology. Composites were cut by a blade and Au/Pd alloy was used for the sputter coating (3-6 nm) on the sample cross-section before the analysis.
Viscosity
To observe the filler ratio and particle size on viscosity, VMT/SEEPS/toluene mixtures were analyzed by using Brookfield DV2T viscometer (USA). Sample weight was 7 g (5 g SEEPS/VMT/Toluene + 2 g Toluene) and characterization was performed at a speed of 200 rpm with a spindle number of #5 at room temperature (25°C, 60% RH). For each mixture three measurements were performed, and average values were reported (Extra 2 g of toluene was added into SEEPS solution before the measurement 5 g SEEPS/Toluene + 2 g Toluene). To compare the two sets, normalized viscosity (NV) was calculated from η/ηSEEPS, where η is the viscosity of the sample ηSEEPS is the viscosity of the SEEPS solution.
Fourier Transform Infrared Spectroscopy (FTIR)
FTIR analysis was carried out by the attenuated total internal reflectance (ATR mode) spectroscopy (Perkin Elmer, Spectrum 100 IR spectrometer). Spectra were recorded in the transmittance mode between 650 and 4000 cm−1, spectral resolution of 4 cm−1 at a scan rate of 4 scans.
Thermogravimetric Analysis (TGA)
To determine the thermal behavior of the SEEPS film and VMT/SEEPS composites, TGA analysis was carried out (Seiko, TG/DTA 6300) between 25 and 500 °C. Temperature was increased with the rate of 10 °C min−1 under 200 ml min-1 nitrogen flow rate.
Mechanical Characterization
Mechanical properties including tensile strength and tensile strain of SEEPS film, VMT-1/SEEPS and VMT-2/SEEPS composites were characterized by using a universal testing system (Devotrans, DVT GPU/RD). Samples were cut by a blade (length: width 15 mm: 5 mm). Before the test, the average thickness of the composites was determined by a thickness meter (Asimeto). Three tests were performed for each sample with the test speed of 100 mm/min.
Vertical Flame Spread Analysis
To compare the flame resistance of the samples, a simple flame spread analysis was performed. Samples were cut by a blade (length: 60 mm, width: 10 mm). Tests were carried out at 25 ˚C under 65% relative humidity. A metal ruler was placed on a stand and samples were attached on the ruler by a metal paper clip. Metal ruler was used in order to monitor the spread of the flame as a function of time. To start the flame adjustable kitchen lighter was used with same setting for all samples. The test was recorded by the video camera and to compare the flame retardancy of the samples, at different time intervals the images were captured from the video.
Results and Discussion
Morphological Analysis
1, 10, 20VMT-1 and 1, 10, 20VMT-2 composites were analyzed in terms of their microstructural morphology by considering behavior of polymer, filler size, filler geometry, filler orientation, filler distribution, filler-matrix interaction. As given in the cross-sectional SEM images (Fig. 3), SEEPS was the continuous phase and completely molten under given processing conditions and behaved as the binder between VMT particles for both sets. By increasing the VMT ratio, amount of the filler in the cross-section increased regardless of the VMT type. Those can be also confirmed by the digital images of the composites in Fig. 2. As obvious from the images, film formation was obtained for all samples and by increasing the filler concentration, samples turned into darker shade of brown. As seen from all SEM images (Fig. 3), the filler size in VMT-2 loaded composites were higher than VMT-1 loaded composites. As far as measured from the SEM images (Fig. 1b and d), approximate average size was determined as 35.8 and 53.1 µm for VMT-1 and VMT-2 loaded composites, respectively. However, the particle size observed in the composites were not same as in the particle size distribution histograms. As mentioned previously, before the sample preparation, average particle size values were determined as 299.5 and 551.6 µm for VMT-1 and VMT-2, respectively. The decrease in particle size could be an indication of separation of VMT layers from the surface of the particles or breakdown of VMT particles and that was assumed to be caused by expanded VMT morphology and composite processing conditions.
 |

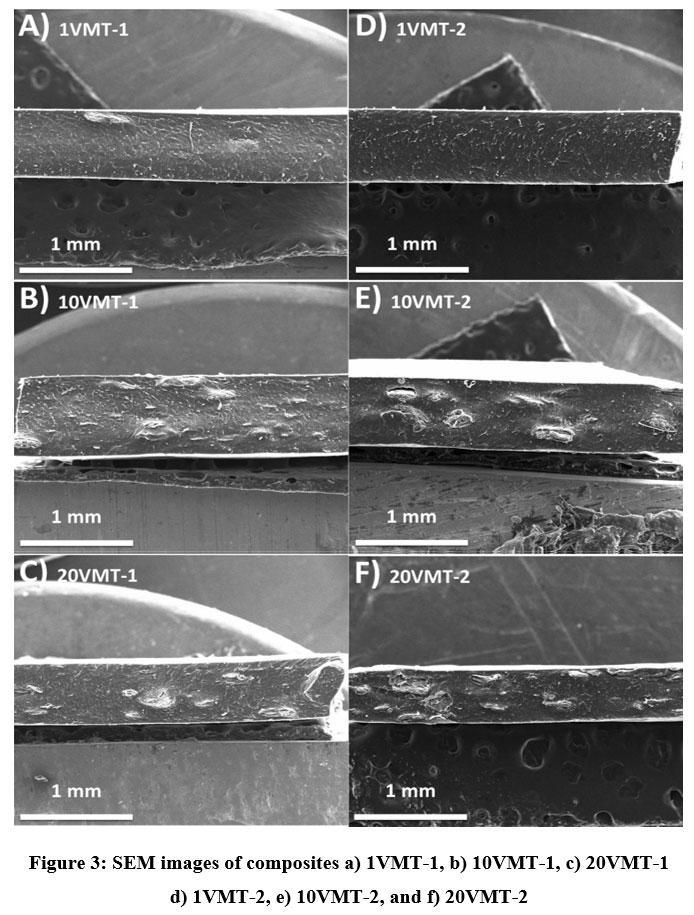

Figure 3: SEM images of composites a) 1VMT-1, b) 10VMT-1, c) 20VMT-1 d) 1VMT-2, e) 10VMT-2, and f) 20VMT-2
Click here to View Figure
|
As known, vermiculite has a multilayered morphology. During expansion process, morphology turns into a curved, accordion-like structure. The layers expand and loosely bind to each other. When the morphology of the VMTs is considered in the SEEPS phase, basically two different morphologies were observed. For both composites, multilayered, accordion-like large particles and a few layered small particles can be observed from Fig. 3 and 4.
 |
Figure 4: SEM images that show the few layer VMTs separated from the particle a) 20VMT-1 at 2.5kx, b) 20VMT-1 at 10kx, c) 20VMT-2 at 2.5kx, and d) 20VMT-2 at 10kx
Click here to View Figure
|
As mentioned in the composite preparation, filler was dispersed both in the solvent and in the polymer solution by a planetary high-shear mixer. As observed previously 27 and reported in the literature 28, high shear mixing led to change in the morphology of VMT particles. To observe such effects SEM images taken at higher magnifications were given in Fig. 4, and as obvious from the images, a few-layer thick sheets separated from the outer surface and dispersed in the SEEPS matrix regardless of the particle size. When the composites were analyzed in terms of filler orientation, particle morphology was found significant. While larger particles with multilayered morphology tended to align parallel to the film axis (Fig. 3), same behavior was not observed for a few layered VMTs (Fig. 4). The orientation of the larger particles probably caused by the fabrication method. As previously mentioned in the methods section, compression molding under 3 MPa probably led to alignment of VMTs parallel to the film axis 29,30. On the other hand, during high-shear mixing, smaller particles dispersed in the SEEPS matrix without any orientation and applied pressure was not sufficient for the dominant orientation. Fig. 4 can also be used to observe the filler-matrix interface and void formation for both fillers. As obvious from the images, loosely bounded outer layers of VMTs separated from the surface and formed a few layered VMTs and they were well-wetted and dispersed in the SEEPS matrix with a good interface. However, the inner body of VMTs could not interact with the matrix and voids were formed at the boundary between a few layered VMTs and inner body of VMTs. That was assumed to be caused by not only separation of a few layered VMTs but also processing conditions. Under pressure and thermal energy, molten SEEPS matrix wetted the surface of VMT. When the pressure is removed, relaxation of SEEPS phase probably led to separation of loosely bonded outer layers and void formation (Fig. 4). The void content was found to be higher at higher filler loading. In addition to these, at higher filler loading, VMTs tend to form agglomerates.
Viscosity
Viscosity and normalized viscosity values of the samples can be seen from Table 1 and Fig. 5 as a function of VMT loading ratio. As seen from Fig. 5, viscosity of the samples increased parallel with the filler ratio regardless of the VMT type. VMT restricted the flow ability of the polymer solution because of its rigid structure. The viscosity values of SEEPS, 1, 5, 10, 20, 30VMT-1 were measured as 1454, 1500, 1650, 1842, 2061, 2086 cP, respectively. The NV values were calculated as 1.03, 1.13, 1.26, 1.42, 1.43 for 1, 5, 10, 20, 30VMT-1, respectively. The viscosity values of 1, 5, 10, 20, 30VMT-2 were measured as 1634, 1751, 2463, 2809, 2832 cP, respectively. The NV values were calculated as 1.12, 1.2, 1.63, 1.93, 1.94 for 1, 5, 10, 20, 30VMT-2, respectively. As obvious from the outcomes, in all cases VMT-2 filled samples showed higher viscosity. That was assumed to be caused larger particle size. However, while at 1 and 5 wt% filler loading, the viscosity values were close for VMT-1 and VMT-2, the difference showed an increasing trend from 10 wt% filler loading. As given in Fig. 5b, both sets showed percolative behavior in terms of viscosity change. However, VMT-2 filled set showed a drastic change in viscosity between 5 and 10 wt% filling ratio that is defined as rheological percolation at which filler-filler interaction and resistance to flow increased. The highest viscosity values were obtained for 30VMT-1 and 30 VMT-2 those showed around 43% and 94% increase in viscosity, respectively.
FTIR Analysis

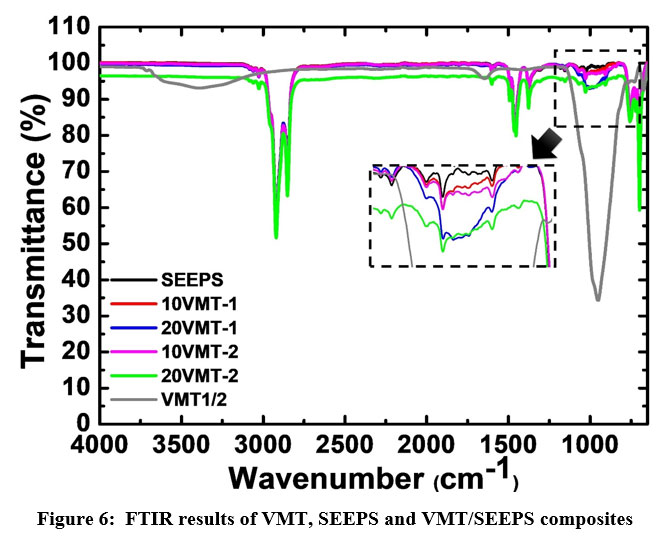

FTIR analysis of the 10 and 20VMT-1/2 filled composites and SEEPS film can be seen from Fig. 6. FTIR peaks related with styrenic unit of styrene-[ethylene-(ethylene-propylene)]-styrene block copolymer can be seen at 697 and 756 cm-1. These peaks were corresponded to bending aromatic ring of C-H. Also, the band between 1450 and 1500 cm-1 was associated with stretching aromatic ring of C-C 31. The peak at 1376 cm-1 was corresponded to symmetrical bending vibrations of –C-H (CH3). The peak observed at 2950 cm-1 was an asymmetric stretching belonging to the CH3 group, whereas CH3 observed at 1456 cm-1 had a symmetrical bending type peak of the repeating units of ethylene-(ethylene-propylene). The characteristic peaks related with asymmetric stretching vibrations of –C-H (CH2) can be seen at 2850 and 2920 cm-1 32. Peaks between 800-1160 cm-1 were caused by peaks connected to the C-C groups of the block copolymer 27,32,33.
Since results of the vermiculites were commonly similar, only one infrared spectrum was given as VMT-1/2. Vermiculite showed a few weak to medium intensity bands, and their positions vary with the amount of inorganic content distribution accordingly. All VMT/SEEPS composites showed similar trend, but the width of Si-O band was different in various specimens possibly due to the difference in the range of their particle size distribution. In addition to that, for VMT/SEEPS composites, as shown in the inset image, characteristic transmission % intensity between 900–1100 cm-1 was observed to increase parallel with the concentration and particle size of VMT 34,35.
Thermal Gravimetric Analysis

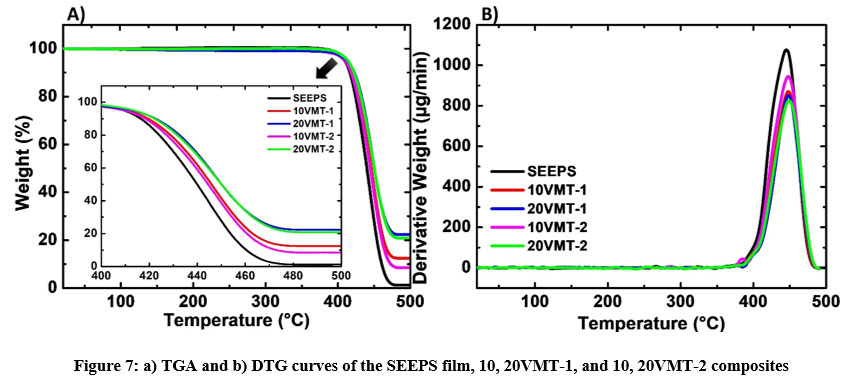

Thermal degradation behavior between 25-500 ˚C for the SEEPS film and composites can be seen in Table 2 and Fig. 7. SEEPS showed thermal stability up to 400 ˚C. As given in Table 2, T10% and T50% values were determined as 416 ˚C and 439 ˚C, respectively. The char % was determined as 1.5. As known, vermiculite is a thermally stable mineral that can stand high temperatures 27. Based on this fact, it was expected to observe increase in thermal stability after addition of VMTs into the SEEPS. Regardless of the VMT type, thermal stability and char yield increased. At 20 wt% VMT concentration stability and char yield was higher compared to 10 wt% VMT filled composites. No significant difference was observed between VMT-1 and VMT-2 in terms of their contribution to thermal stability.
Table 2: Thermal degradation behavior of the SEEPS film and VMT/SEEPS composites
|
Sample
|
T10%
(°C)
|
T50%
(°C)
|
Tmax degredation
(°C)
|
Weight Loss
Tmax degredation (%)
|
Char Yield (%)
|
|
SEEPS
|
416.37
|
439.85
|
445.22
|
61.73
|
1.47
|
|
10wt%VMT-1/ SEEPS
|
418.37
|
445.92
|
447.95
|
54.19
|
12.59
|
|
10wt%VMT-2/ SEEPS
|
418.48
|
444.48
|
447.85
|
56.76
|
8.89
|
|
20wt%VMT-1/ SEEPS
|
422.50
|
450.01
|
448.36
|
46.50
|
22.51
|
|
20wt%VMT-2/ SEEPS
|
422.06
|
449.98
|
448.98
|
47.92
|
21.1
|
Mechanical Characterization

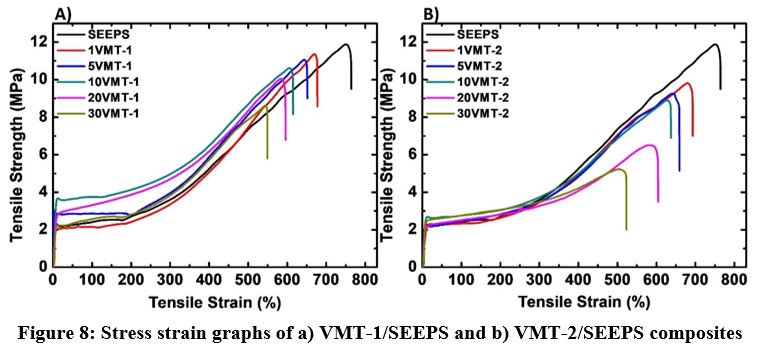

Tensile stress-strain graphs of SEEPS film and composites can be seen from Fig. 8 and averaged values can be seen from Table 1. The tensile strength of SEEPS, 1, 5, 10, 20, 30VMT-1 were measured as 11.88, 11.35, 11.06, 10.62, 10.04, 8.62 MPa, respectively. Increase in VMT-1 loading ratio led to decrease in tensile strength. Parallel with this conclusion, VMT-2 loaded composites also showed decreasing trend in terms of tensile strength. The values were determined as 9.80, 9.25, 8.89, 6.50, 5.22 MPa for 1, 5, 10, 20, 30VMT-2, respectively. Although both VMTs led to decrease in mechanical resistance to break, VMT-2/SEEPS composites showed lower values compared to VMT-1/SEEPS composites. That kind of response probably caused by filler-matrix interaction as explained in morphology analysis section. During film formation, samples exposure to thermal energy and compressive force to melt SEEPS matrix. Although, molten SEEPS wetted the surface of VMTs, after the removal of compressive force, relaxation of SEEPS phase probably led to separation of loosely bonded, a few layered outer layers from the VMT body (Fig. 4). As a consequence of that, filler-matrix interface and mechanical resistance to break were negatively affected. That was also reflected as a decrease in strain at break values as shown in Fig. 9. Regardless of the VMT type, increase in VMT concentration led to decrease in tensile strain values. SEEPS, 1, 5, 10, 20, 30VMT-1 had tensile strain values as 750, 670, 644, 605, 585, 544 %, respectively. The tensile strain values of 1, 5, 10, 20, 30VMT-2 were measured as 679, 642, 627, 583, 501 %, respectively. Unlike in tensile strength, no significance difference was observed between two sets.
 |

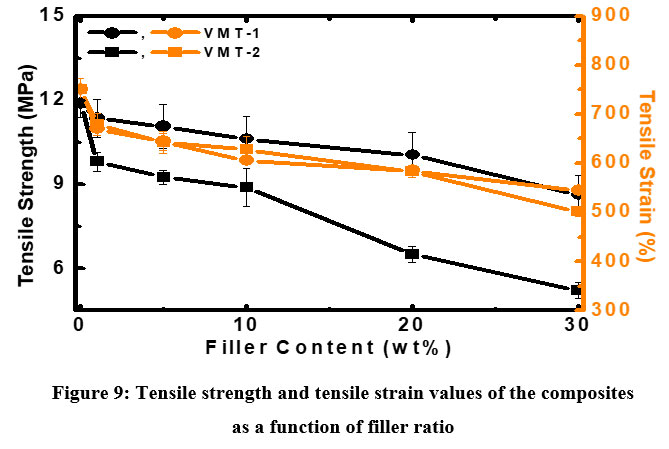

Figure 9: Tensile strength and tensile strain values of the composites as a function of filler ratio.
Click here to View Figure
|
Vertical Flame Spread Analysis
Vertical flame spread analysis is a simple way of observing flame resistance of the materials. SEEPS is a hydrocarbon-based styrenic block copolymer with high flammability. In this work, flame was started, and tests were recorded by a video camera (Supplementary material, Video 1) and to compare the flame spread behavior of the samples, images were captured for 5, 10, 30VMT-1 and 5, 10, 30VMT-2 composites at different time intervals based on their performance. As shown in Fig. 10, by increasing the VMT ratio, flame resistance of the samples increased for both sets.

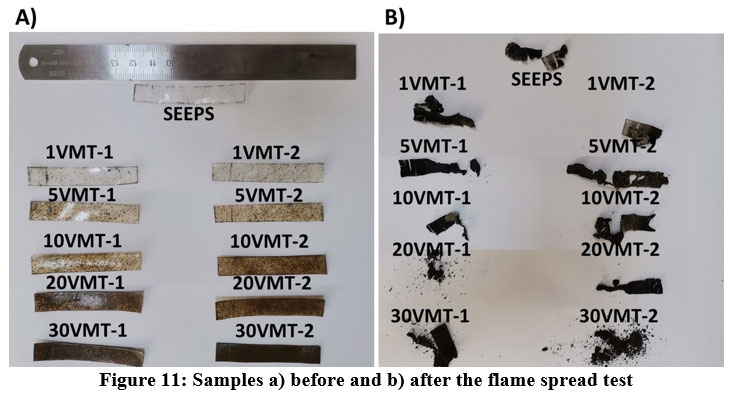

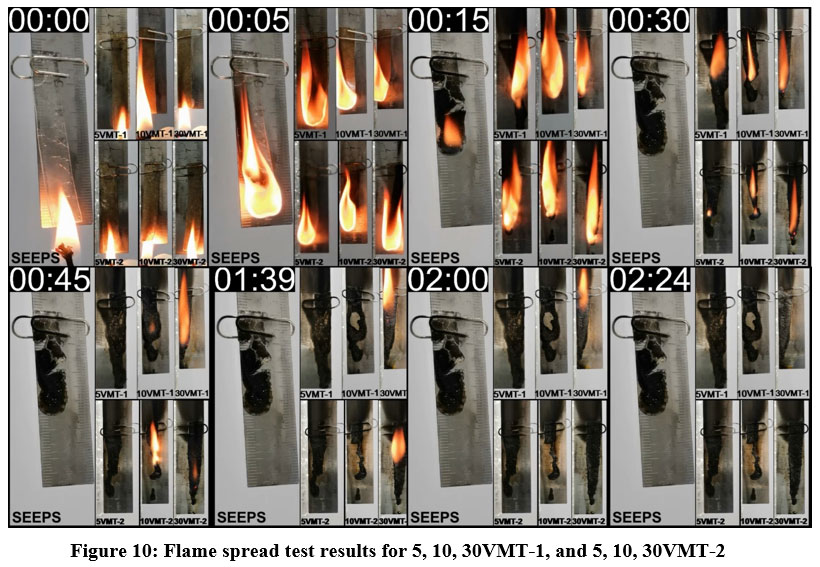

The samples were evaluated in terms of burning behavior, time required for complete burning and residual char morphology. The digital images of samples before and after test were given in Fig. 11. For SEEPS film, thermal degradation and melting took place together as in thermoplastics and dripping of the residual char/molten polymer mixture was observed. SEEPS film shrank vertically as soon as test started. Burning completed around 20 sec. and residual char was a black rigid solid as given in Fig. 11. Similar burning behavior was observed for 1, 5VMT-1 and 1, 5VMT-2 samples. However, 5VMTs showed slower shrinkage, and bended during burning test. The burning stopped after 43 and 33 sec. for 5VMT-1 and 5VMT-2, respectively. Residual char was foamy rigid solid. 10VMT-1 and 10VMT-2 showed less dripping and less shrinkage and bending compared to 5VMTs. The required time for complete burning was 49 and 99 sec. for 10VMT-1 and 10VMT-2, respectively. Residual char showed higher porosity compared to 5VMTs. 20, 30VMT-1 and 20, 30VMT-2 showed almost best performance in terms flame retardancy. For 30VMTs both films showed high thermal dimensional stability and less dripping. The total time was 144 and 100 sec. for 30VMT-1 and 30VMT-2, respectively. The residual char was bulky foam and easily crumbled in the hand. In addition to these VMT containing samples burned with a shiny glow.
The flame retardancy of VMT was previously reported in many studies, but none of these studies flame retardancy performance was evaluated based on the filler size. As can be seen from the results and supplementary material, Video 1, VMT-1 generally showed higher performance in terms of flame retardancy. That was probably caused by better dispersion of smaller particles in the SEEPS matrix. The mechanism of flame retardancy of VMT was previously studied and reported by many authors 27,36–43. One of the most important reasons for flame retardancy is the composition of the VMT. SiO2, Al2O3, MgO, Fe2O3 are the common components of VMT. SiO2 44,45, Al2O3 45, MgO 46–51, and Fe2O3 52 were reported to have high thermal stability and improve the thermal stability, flame retardancy and smoke suppression of the polymeric composites. The flame retardancy mechanism was not only attributed to VMT composition but also residual foam formation during burning 27,36–43,50,51. In addition to thermal insulation capacity and oxygen barrier property of VMT, formation of multi-layered, foamy, carbon-based char formation with good heat and oxygen prevention capacity led to increase in spread of flame during the test.
Conclusions
In this study, expanded vermiculite filled SEEPS composites were reported for the first time in the literature. High shear mixing was used to disperse VMT particles in the matrix. In order to investigate the effects of high shear mixing on composite properties, two different fillers were prepared from the same batch as VMT-1 (299.5 µm) and VMT-2 (551.6 µm). Filler concentration was between 1-30 wt%. Parallel with the starting size, VMT-2 filled composites showed higher particle size in the SEM images. However, as far as measured from the SEM images approximate average size was determined as 35.8 and 53.1 µm for VMT-1/SEEPS and VMT-2/SEEPS composites. That was caused by removal of loosely bonded a few layered particles from VMTs by the effect of high shear mixing. Solution viscosity of VMT loaded samples showed increase with the VMT incorporation. FTIR analysis showed that fillers were homogeneously dispersed throughout the SEEPS matrix. Although mechanical properties of the composites showed a decreasing trend for both sets, VMT-2/SEEPS showed higher decrease in tensile strength and strain. Thermal stability and flame retardancy of the composites improved with the VMT addition and VMT-1/SEEPS composites showed better performance. This study work is of importance not only for fabrication of SEEPS based flexible polymeric composites but also for VMT processing and final size distribution of VMT in the polymer composites. For the fabrication of VMT filled polymer composites, processing conditions should be considered for the final properties and performance of the materials. The composites prepared in this work can be used as flexible, stretchable flame-retardant coatings for various substrates such as protective clothing, home-textiles and geotextiles so future work will focus on these applications.
